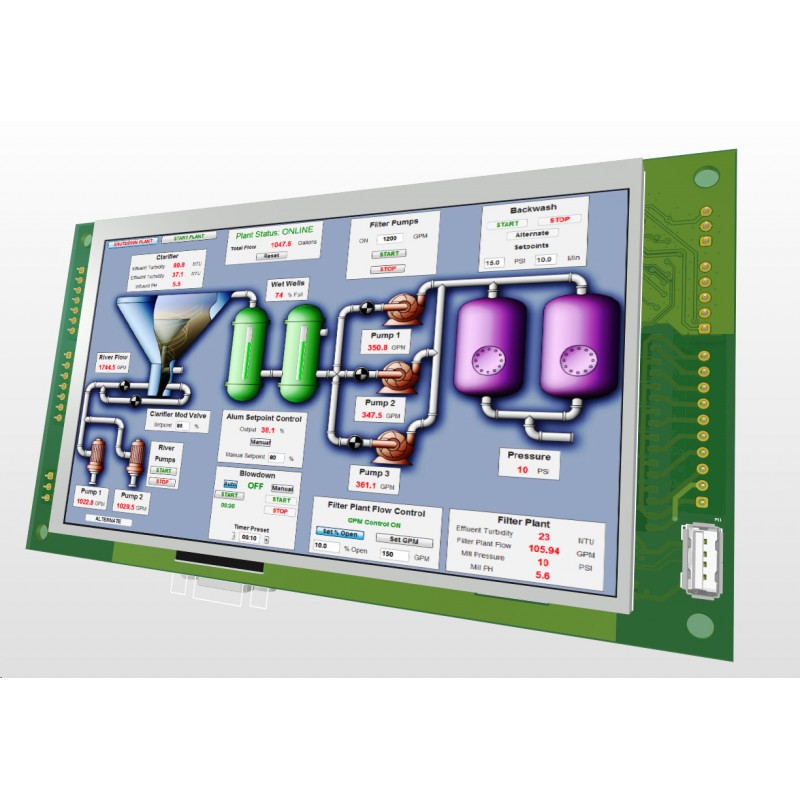

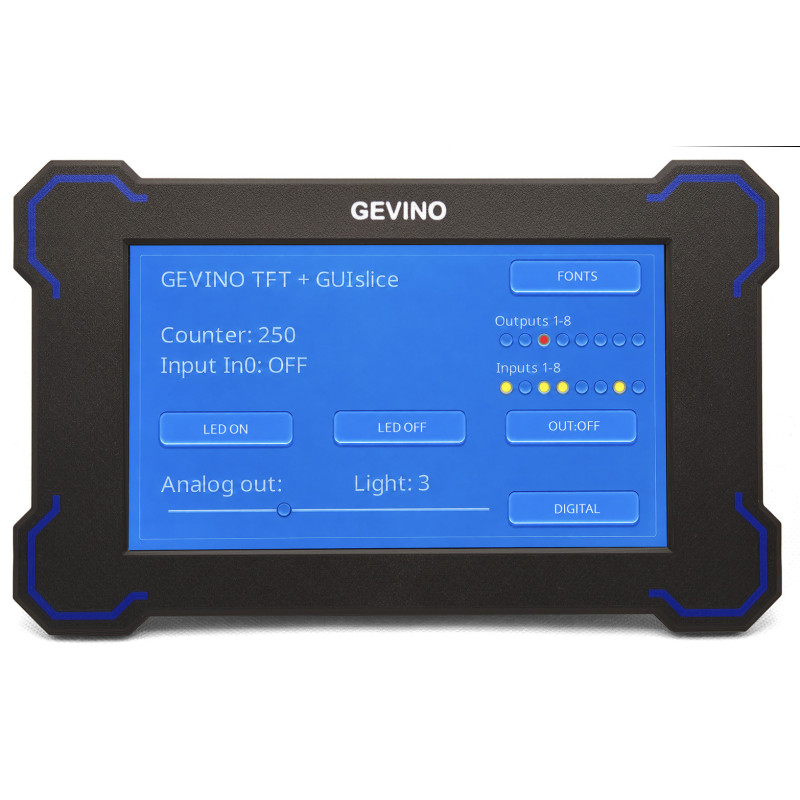

GEVINO TFT 7"

GPT for questions and programming, preliminary.

Manuals and examples.




Specifications

PLC + Display

• 7” Capacitive Touchscreen 1024x600

• Viewing angle: Left:Right:70°, Up:60°, Down:70°, Brightness 400 cd/m²

Arduino Zero Compatible

• Programmable with the Arduino IDE, Cursor, Open PLC

• 32-bit ARM Cortex-M0+ processor, 48 MHz

• Flash Memory 256 KB, RAM 32 KB

Connectivity and I/O

• Front USB port for USB Memory Stick read/write

• Removable terminal blocks with 3.5 mm pitch

• Power Supply: 12V/24V

• 4 Analog Inputs 0-10V or 4-20 mA

• 1 Analog Output 0-10V or 4-20 mA (replaces one analog input)

• 8 Opto-isolated outputs, PNP, NPN, and AC, 1A 30V

• 12 Opto-isolated inputs, including 4 fast inputs with interrupt

• RS485 half-duplex

Memory and Debug Functions

• Rear SD card slot for programming, logging, configuration, images, and voice

• Rear USB-C port for programming and debugging

• Photo display via DMA: Full-color 1024x600 pixel image loading in 80 ms

• Debugging via Ethernet Telnet

• Programming via Ethernet FTP (requires SD bootloader)

Optional Add-ons

• DC-DC Isolator 12V/24V to 12V

• Power supply 220V to 12V

• Real-Time Clock (RTC)

• RS232

• GSM Modem SIM800L with audio output

• WiFi with integrated or external antenna

• Bluetooth

• Ethernet

• LoRa Wireless Transceiver

• DC Motor 27V 43A with current reading

• Black acrylic frame for panel mounting

• Rear board coverage
