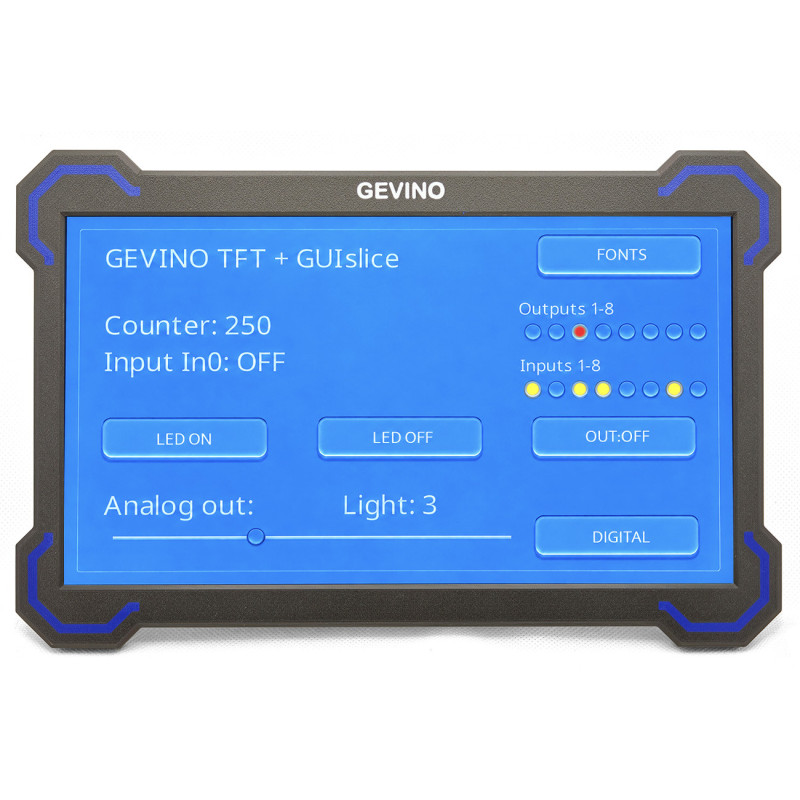

GEVINO TFT 10"

With GEVINO TFT, you can create within seconds:

✅ HMI operator panels
✅ PLC control logic
✅ Dashboards and charts
✅ Web-based monitoring pages
✅ Alarm and historical data management
✅ Modbus RTU and Modbus TCP communications
✅ MQTT, HTTP, WebSocket, and Cloud integrations
✅ Connectivity with external devices and systems

The GEVINO TFT features:

? Integrated PLC and touchscreen display
? 2A outputs configurable as Pull-Up, Pull-Down, or AC
? Opto-isolated inputs
? RS485, Ethernet, Wi-Fi, and Bluetooth connectivity
? Integrated SD card storage

Typical applications include:

? Greenhouses and agriculture
? Smart buildings and home automation
? Industrial automation
⚙️ Machines and process control systems

The goal is to dramatically reduce development time. Instead of writing software, designing screens, and configuring protocols manually, users simply describe the desired result and the system generates the required functionality automatically.

Features

PLC + Display
• 10" screen with capacitive touch 1024x600
• Viewing angle: Left:Right:70°, Top:60°, Bottom:70°, Brightness 400 cd/m²

Arduino Zero Compatible
• Programmable with Arduino IDE, Cursor, Open PLC
• 32-bit ARM Cortex-M0+ processor, 48 MHz
• Flash Memory 256 KB, RAM 32 KB

Connectivity and I/O
• Front USB port for reading/writing to USB Memory Stick
• Removable terminal blocks with 3.5 mm pitch
• Power supply: 12V/24V
• 4 Analog inputs 0-10V or 4-20 mA
• 1 Analog output 0-10V or 4-20 mA (uses one analog input)
• 8 Opto-isolated outputs, PNP, NPN and AC, 1A 30V
• 12 Opto-isolated inputs, 4 of which are high-speed with interrupt
• RS485 half-duplex

Memory and Debug Functions
• Rear SD card for programming, logging, configuration, images, voice
• Rear USB-C port for programming and debugging
• Photo display via DMA: 1024x600 pixel color image loading in 80 ms
• Debug via Ethernet Telnet
• Programming via Ethernet FTP (requires bootloader on SD)

Additional Options
• DC-DC isolator 12V/24V to 12V
• 220V to 12V power supply
• RTC (Real-Time Clock)
• RS232
• GSM modem SIM800L with audio output
• WiFi with integrated or external antenna
• Bluetooth
• Ethernet
• LoRa wireless transceiver
• DC motor 27V 43A with current reading
• Black acrylic frame for panel mounting
• Rear board cover
