GEVINO opto PNP

Questions and programming. Manuals and examples.

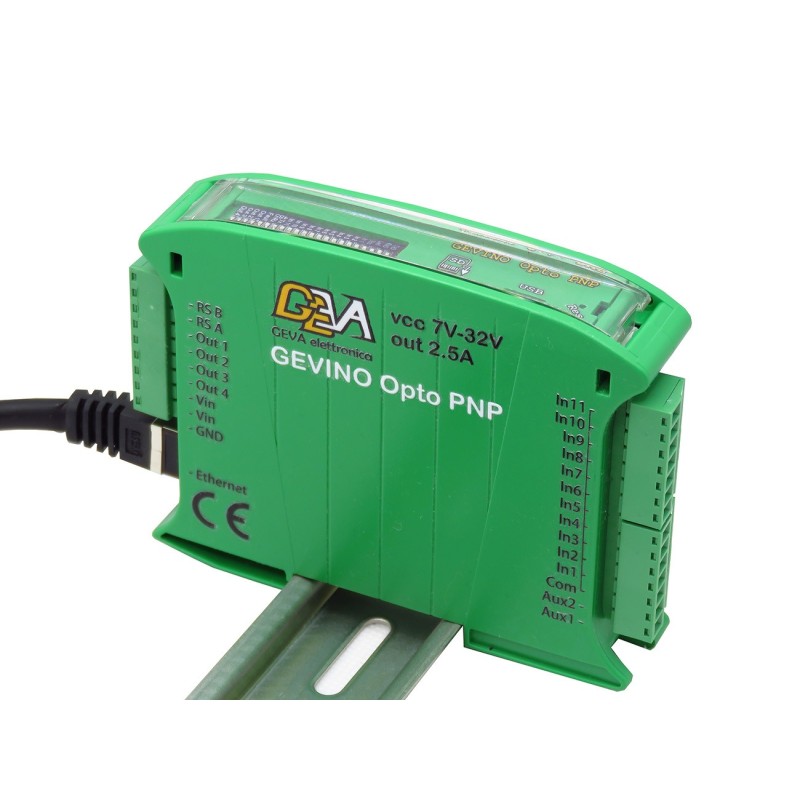

GEVINO Opto, Arduino Zero Compatible

GEVINO Opto, affordable price but equipped with excellent features, such as 12 dual-polarity opto-isolated inputs,
4 short-circuit-protected PNP outputs, SD card and RS485 bus for parallel connection of multiple modules or expansions.
It is protected against inductive loads, electrostatic discharge and electromagnetic interference.
Various options are available, including Ethernet, Wi-Fi, Bluetooth, RTC, RS232, RS485, cellular modem and CE certification.

Features
• Power supply, inputs and outputs: 7V/40V
• 11 opto-isolated inputs, positive or negative common
• 4 short-circuit-protected PNP outputs, 40V 2.5A, for resistive, inductive and capacitive loads
• 2 analog inputs 20 mA / 1V / 10V with 12-bit resolution
• 1 RS485 port for parallel connection of up to 255 GEVINO devices, m-bus or other

Front panel (behind door)
• SD card slot
• Micro USB-C port
• LEDs for inputs, outputs, serial and power
• Reset button

Optional modules
• Ethernet RJ45 module
• WiFi ESP module

Processor
• 32-bit ARM Cortex-M0+, 48 MHz
• Flash Memory 256 KB, RAM 32 KB

Update and Debug
• Ability to update GEVINO firmware via Internet or SD card with a dedicated bootloader
• Debug via Ethernet Telnet
• Programming via Ethernet FTP (requires bootloader on SD)

Three available enclosures with different thicknesses
• 17.5 mm Black slim, for the board without accessories
• 22.5 mm Green medium, for accessories such as Ethernet, RTC, WiFi, Bluetooth and GSM modem
• 35.0 mm Black thick, for accessories such as RS232 on female DB9 and Li-Po battery with charger
