GEVINO ZERO PLC LINbus - ARM Cortex M0+

€25.00

Arduino ZERO M0 compatible

WiFi, GSM, Bluetooth, RS232, LiPo Battery, Ethernet, TFT, LIN Bus LINbus.

Made in Italy

Volume discounts

Quantity Discount You Save
5 5% Up to €6.25
10 10% Up to €25.00
Quantity
In Stock

  • PayPal Protection PayPal Protection
  • Fast Delivery Fast Delivery

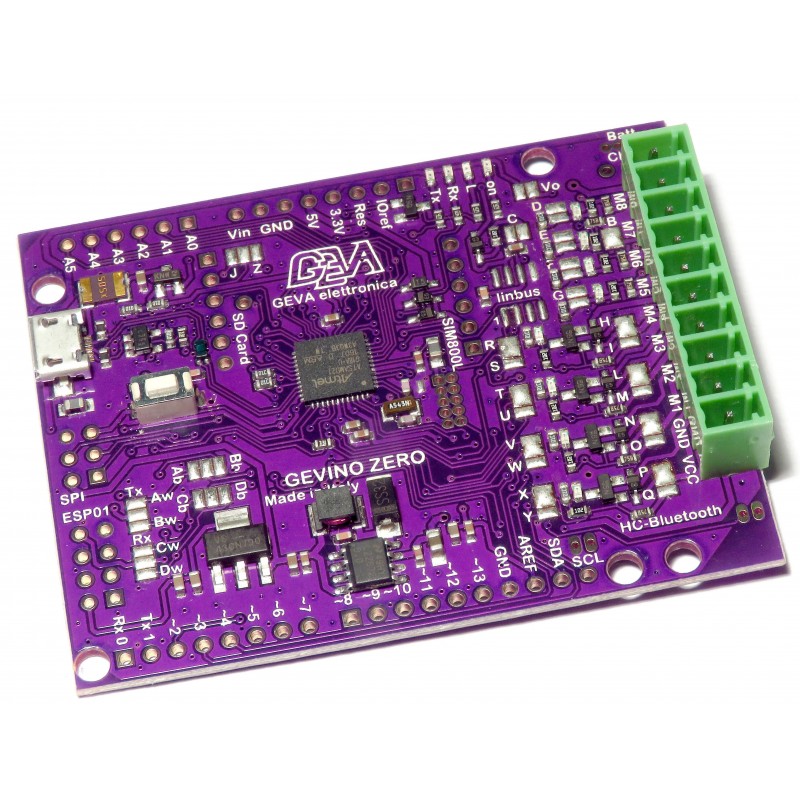

GEVINO ZERO,  Compatible ZERO M0 Arduino

CPU ATSAMD21G18 - Arduino ZERO M0 compatible.
48 Mhz, 32-bit ARM Cortex - M0+ processor.
Flash 256KB, RAM 32K

Micro USB.

Pin to pin Arduino ZERO - M0.

Removable Terminals.

VCC, Input, Output 7V to 20V

4 terminals, Digital Input /Analog Input

   Digital input with LED, need to bring VCC.

   Analog input 1V fs, 6.8V fs, 22V fs

4 terminals, Digital Input / Digital Output

   Digital input with LED + Protection diode, , need to bring VCC.

   9A Output Mosfet with LED (max 6A), protection diode. We advise you not to exceed 6A



Optional:

WiFi modem ESP-01 ESP8266

GSM modem SIM800L

Bluetooth module HC-09

RS232 DB9 module

LiPo Battery and Battery Charger

Ethernet Module

TFT touch

LIN Bus IC - Atmel ATA663211 – Need to be solder on the PCB



Zero bootloader included
M0 bootloader on request
On M0 don't forget that D2 and D4 are exchanged

A to Z, Aw to Dw, Ab to Db, Vo, Are soldering Jumper, see table for their use.
