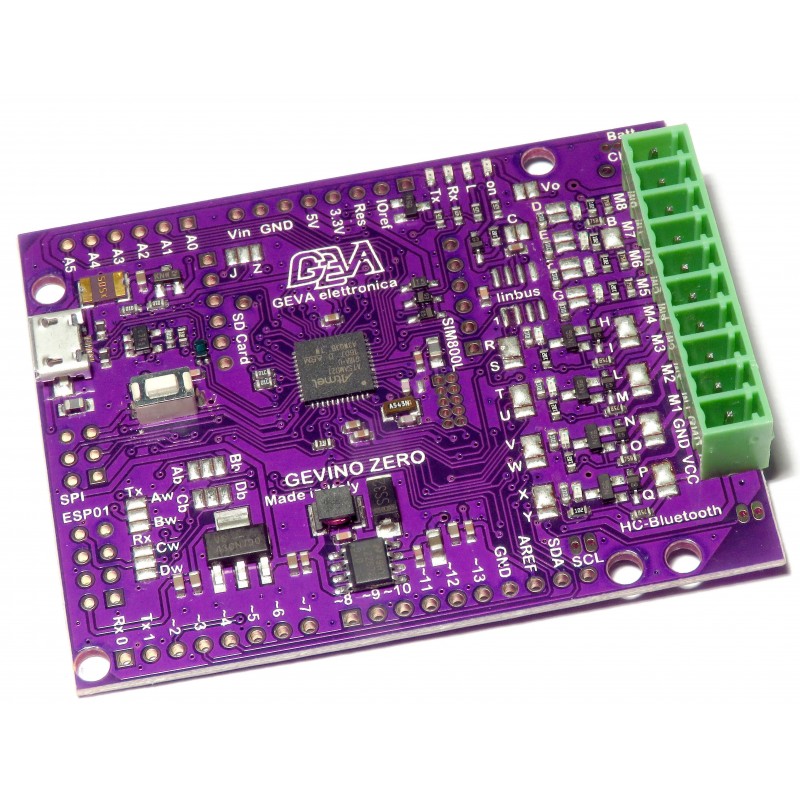

GEVINO ZERO PLC LINbus - ARM Cortex M0+

25,00 €
Tasse escluse

Compatible ZERO M0 Arduino

Input Output, LED, WiFi, GSM, Bluetooth, RS232, LiPo Battery, Ethernet, TFT, LIN Bus LINBUS.

Made in Italy

Sconti sul volume

Quantità Sconto Salva
5 2.5% Fino a 3,13 €
10 5% Fino a 12,50 €
Quantità



Protezione PayPal



Spedizione Rapida

GEVINO ZERO,  Compatible ZERO M0 Arduino

CPU ATSAMD21G18 - Arduino ZERO M0 compatible.
48 Mhz, 32-bit ARM Cortex - M0+ processor.
Flash 256KB, RAM 32K

Micro USB.

Pin to pin Arduino ZERO - M0.

Removable Terminals.

VCC, Input, 7V to 20V

4 terminals, Digital Input /Analog Input

   Digital input with LED, need to bring VCC.

   Analog input 1V fs, 6.8V fs, 22V fs

4 terminals, Digital Input / Digital Output

   Digital input with LED + Protection diode, , need to bring VCC.

   9A 12V Output Mosfet with LED (max 6A), protection diode. We advise you not to exceed 6A

Supply:

GEVINO board
unsoldered 5 block pins
unsoldered Right Terminal, male + female



Optional:

Right angle terminals

WiFi modem ESP-01 ESP8266

GSM modem SIM800L

Bluetooth module HC-09

RS232 DB9 module

LiPo Battery and Battery Charger

Ethernet Module

TFT touch

LIN Bus IC - Atmel ATA663211 – Need to be solder on the PCB

Zero bootloader default
M0 bootloader on request
On M0 don't forget that D2 and D4 are exchanged

A to Z, Aw to Dw, Ab to Db, Vo, Are soldering Jumper, see table for their use.
