Industrial GSM Telephone Dialer 4G global

Chat replies Manual and Firmware HTML Demo Pages

GEVINO Alarm
Industrial 4G Global Phone Dialer.
Global Coverage.
Voice Calls, SMS, email, from 11 to 3000 physical inputs.
Up to 9999 alarms from Modbus.
Output control via SMS.
Weekly timer.
Configuration via local html menus or web server.
Event log on SD
Programmable delay on first 11 inputs.
Modbus TCP-IP to send alarms from PLC
Configurable via html, SD or FTP.

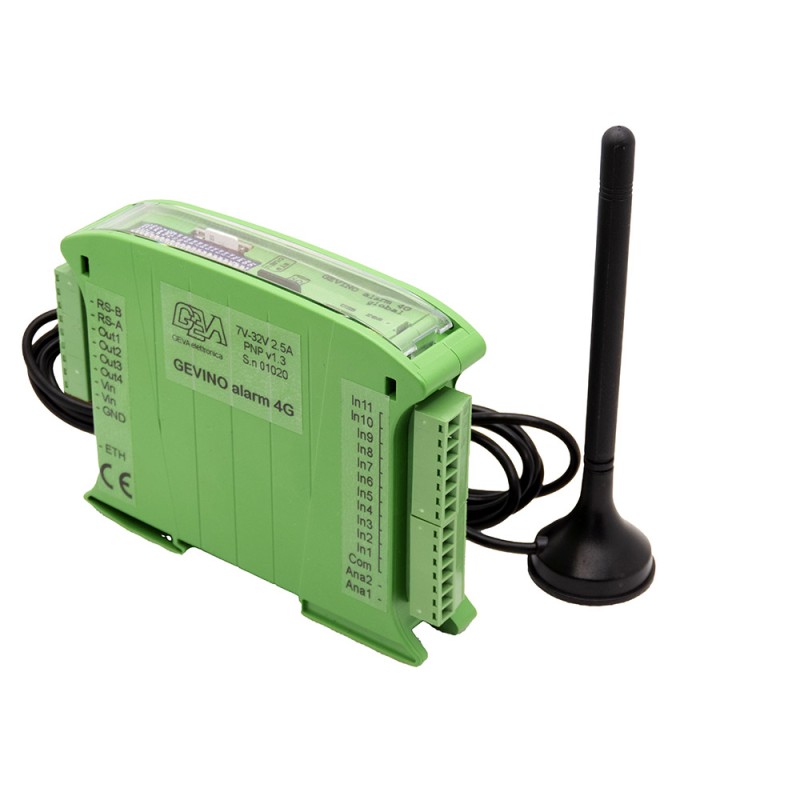

Industrial GSM Phone Dialer:
This device is designed for industrial applications and can send voice notifications, SMS and email to a maximum
of 999 numbers and addresses.
It offers up to 11 expandable inputs, with the possibility to add up to 254 expansion modules.
Via Modbus TCP it is possible to trigger the same physical alarms or others.

Main Features:
• Customizable notifications: Each input can send customized voice notifications, SMS and email, with specific alerts for opening or closing.
• Advanced timing: On the 11 basic inputs, it is possible to set delays (Refrigerator door).
• Configuration interfaces: Configuration via local html menus or on web server, FTP, text files on SD and SMS.
• Debug support: Telnet, USB and log files.
• Modbus integration: Works as Modbus TCP/IP client for call activation and notification sending.
• Output control via SMS: Ability to manage outputs through SMS commands sent to the device.
• Weekly timer: Programming of call activation/deactivation on a weekly basis.
• PLC functions: Programmable for specific functions.
• Accessories: Includes external magnetic antenna and micro SD for data storage.
• Front SIM insertion
• Option with GPS receiver.
• Access control, you can connect via RS485 bus RFID readers and Touch keypads, manage cards and codes and log via Web.
• Control panel on internet, via Ethernet.

Possible Use:
• Refrigerator malfunction or door left open.
• Oven malfunction, or temperature below an alarm threshold.
• Flooded underpass.
• Boiler malfunction.
• Plant alarm, from PLC

Additional Features on Request:
• Temperature notifications: Monitoring via Modbus RS485 probes, with alerts for exceeding limits.
• Programmable holiday calendar: Allows event management based on holidays.
• 220V Power supply
• 6 NPN outputs or 7 220V relays (GEVINO NPN or Civile)
• GPS functions

Frequently Asked Questions:
• Ethernet: The device supports FTP for SD access, Telnet for debugging and Modbus to activate alarms and read status, HTML pages for status debug and configuration.
• SD Configuration: Configuration is done through files on SD, modifiable via HTML or FTP or SMS. It is not possible to change it via Modbus.
• Recorded voices: Voice notifications use customizable WAV files.
• Alarm customization: There is no limit to configurable and manageable alarms via Modbus; each input or alarm is uniquely configurable. `
